Intricately woven into the soil beneath our feet are the lifeblood of the city - a variety of piping systems, including water supply, drainage, power, communications and other infrastructure. These invisible networks support the normal operation of modern life. However, when it comes to maintaining, remodeling or avoiding accidental damage to these underground pipelines during construction, the traditional method of "crossing the river by touching the stones" is obviously no longer applicable. The Pipe Cable Locator is an invisible map maker that reveals the secrets of the underground with its high-tech eyes.
How Pipe Cable Locator works
Pipe Cable Locator is mainly based on two technical principles: electromagnetic field induction technology and geo-radar technology.
1. Electromagnetic field induction technology: This is the most common detection method. It works by transmitting electromagnetic waves of specific frequencies into the ground, and when the electromagnetic waves meet metal or pipelines with conductivity, they will produce reflected signals. The receiver captures these reflected signals and determines the location, depth and direction of the pipeline by analyzing the signal strength, phase difference and other parameters. For active pipelines (such as power supply lines), the electromagnetic field generated by itself can be directly utilized for tracking; while for passive pipelines, the signals emitted by the transmitter need to be used.

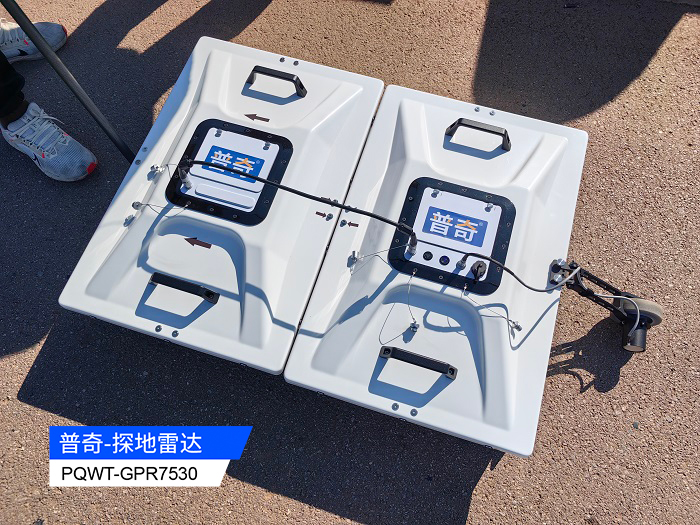

2. Geo-radar technology: this method uses high-frequency electromagnetic pulse to penetrate the soil, when the pulse encounters the interface of different media (e.g., soil and pipeline), reflection will occur, and the returned signal will be received and converted into an image to show the underground structure. Geo-radar can not only detect metal pipelines, but also non-metallic materials (such as PVC pipes) and underground cavities, with a wider range of applications.
Application fields
1. Urban construction and building: Pipe Cable Locator is an indispensable tool in road construction, housing development, subway tunnel excavation and other projects, which can effectively prevent the damage of existing pipelines during construction, reduce the risk of accidents, and ensure construction safety.
2. Pipeline maintenance and repair: For aging and damaged underground pipelines, the detector can quickly locate the problem areas, provide precise guidelines for repair work, improve work efficiency and reduce repair costs.
3. Emergency Rescue: In emergency situations such as natural gas leaks and water pipe bursts, finding the location of the accidental pipeline quickly and accurately is crucial to controlling the danger and reducing the loss in time.
4. Archaeological and geological exploration: In addition to urban pipelines, Pipe Cable Locator is also used in archaeological excavation and geological structure investigation, helping researchers to explore underground buried objects and geological structures.
Development trend
With the continuous progress of technology, modern Pipe Cable Locator is developing towards higher accuracy, wider detection range, stronger adaptability and intelligence. For example, the integrated GPS positioning, data cloud synchronization, artificial intelligence analysis and other functions of the equipment, so that the detection results are more intuitive, easy to understand, to provide a more scientific basis for decision-making.
As an important tool for the management and maintenance of modern urban underground space, Pipe Cable Locator not only guarantees the safe operation of urban infrastructure, but also promotes the efficient and sustainable development of urban construction. In this invisible battlefield, it illuminates the road ahead with the light of science and technology.
